NORE48F / NOBT48F / NOTR48F
Introduction

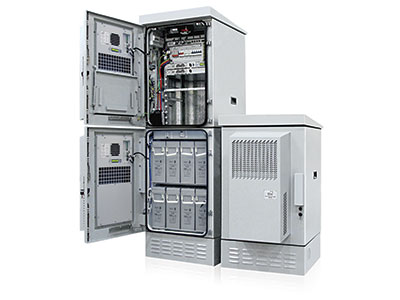

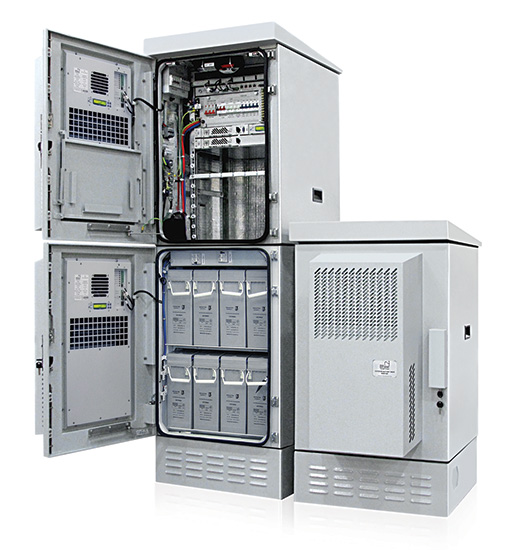

This outdoor series consist of two stackable cabinets and easy to transport parts; the top section is designed for installation of power supply, alarm panel, AC&DC -distribution MCBs and 10U free space (for further required equipment). The bottom section is for two rows of VRLA back-up batteries (400 Ah).
Features
• IP55 compliance Standard
• Power Management Unit (PMU)
• AC SPD
• Up to 3 NCR48U hot-pluggable rectifiers (48V / 2 KW / 3 KW)
• Up to 2 battery rows(400 Ah back-up)
• AC & DC power distribution MCBs (custom design)
• DC air conditioner & heater
• Smoke detector, Humidity sensor,Door Sensor Flood Sensor (Optional)
• Remote control & monitoring
• Isolated with polyurethane foam
• DC (48~60)V service light with 2m cable
• Anti-crowbar doors
• Anti-theft belt (Optional)
